Thermistor for 3D Printer

149.00 1,599.00
MAX31865 Amplifier Board Thermistor NTC 3950 Thermistor NTC B3950 PT100
1 10 2 3 5
Estimated Delivery:
09 - 16 Dec, 2024
Trust Badge
Guaranteed safe & secure checkout

Description

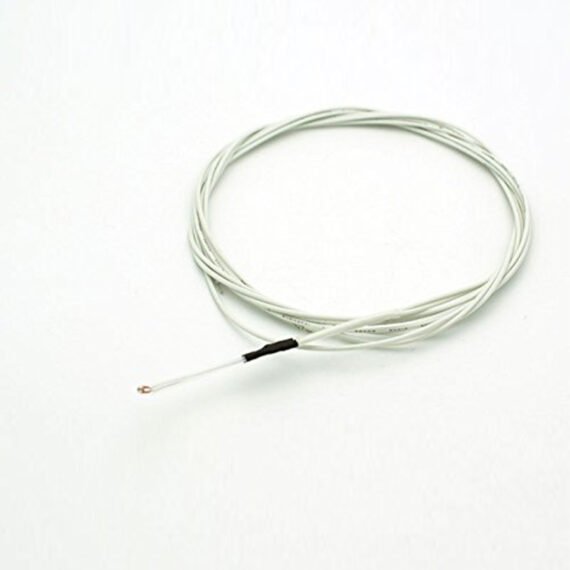

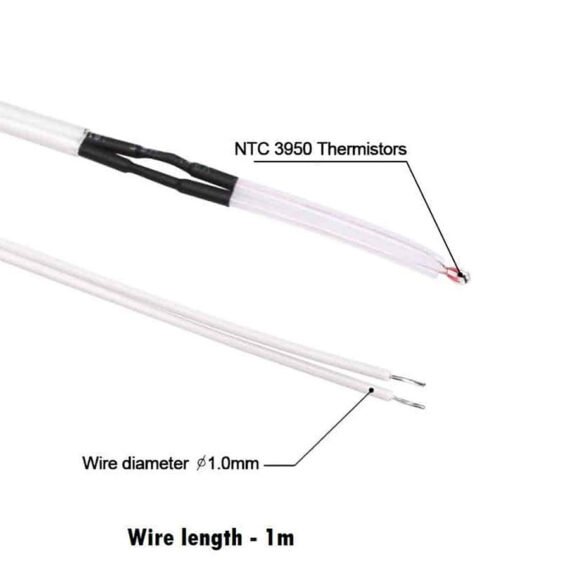

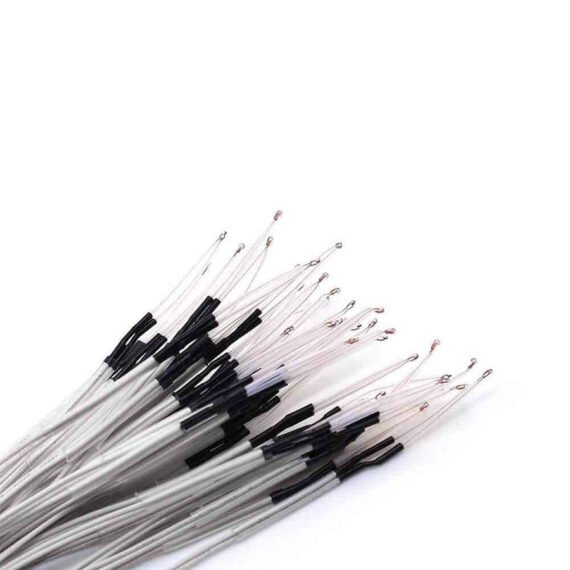

NTC 3950
  • TEMPERATURE SENSITIVITY: The NTC 3950 thermistor has a high sensitivity to temperature changes, meaning its resistance decreases as the temperature increases.
  • APPLICATIONS: NTC thermistors, including the NTC 3950, are widely used in various applications, such as temperature measurement, temperature compensation, and temperature control circuits. Compatible with ender 3, multiple other creality 3d printers and printers of other brands.
  • FEATURES: 100K NTC Thermistor has High sensitivity, has a swift response, 1 percent, resistance value at 25°c= 100k. Compact structure, easy to install, Adaptive thermo-sensitive material. Wiring insulation has high temperature Teflon/ PTF

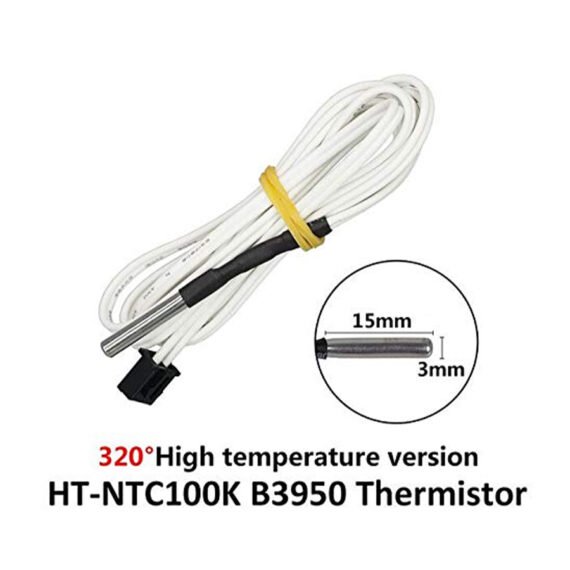

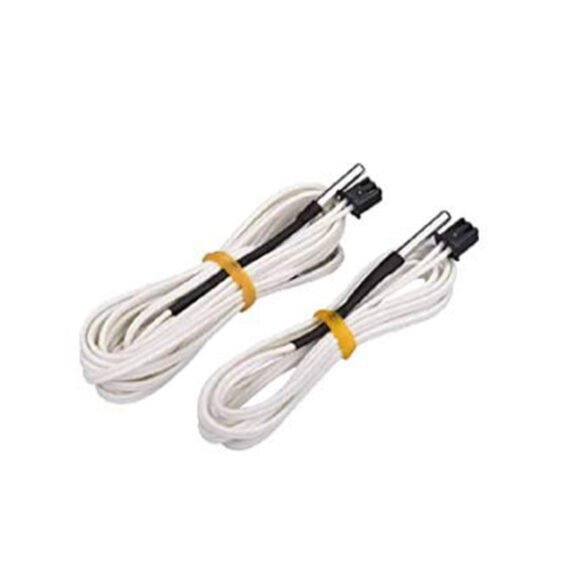

NTC B3950 PT100
  • SPECIFICATIONS: Upgrade hotend thermistor cartridge, Resistance: 100(+-3%) kohms, B value: 4 267 K(+-2%) at 25/85 Degree C. Total length about 88.5cm/34.84inch, cable Length: about 850mm/33.46inch with a DuPon aircraft head.
  • FEATURES: Temperature measurement head cylinder diameter 3mm, length 12mm, can be used with the heating block that support the thermocouple; not compatible with upgraded CR10 heat blocks. TEMPERATURE: The temperature measurement: -50 °C ~ +300 °C, can replace the original K-type thermocouple temperature, very fit for printing high-temperature filament. (Please note that the temperature should not be over 300 °C, otherwise the temperature will not be accurate.)
  • MATERIAL: Made of high quality material, with the imported electrical resistor mini 104NT, with the internal temperature package to ensure the maximum service life with precision temperature measurement. A newest model, which can be for 300℃ long hours printing.
MAX31865 Amplifier Board
  • PRECISION SENSING: For precision temperature sensing, nothing beats a MAX31865 RTD Platinum Resistance Temperature Detector Module PT100-PT1000. In this sensor, the resistor is actually a small strip of Platinum with a resistance of 100 ohms at 0 ºC, thus the name PT100.
  • RTD: Resistance temperature detectors (RTDs) are temperature sensors that contain a resistor that changes resistance value as its temperature changes, basically a kind of thermistor.
  • DIGITAL I2S INTERFACE: with high precision 24-bit data Low power consumption: low current consumption 1.4 mA. ±45V Input Protection 21ms (max) Conversion Time
