Sale !
Electronic Kits – Controllers & Sensors
₹149.00 – ₹699.00
Guaranteed safe & secure checkout
Description
Technical Details
Reviews (0)
Description

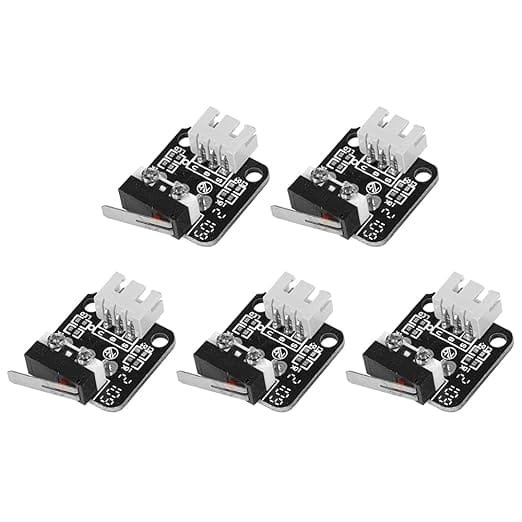

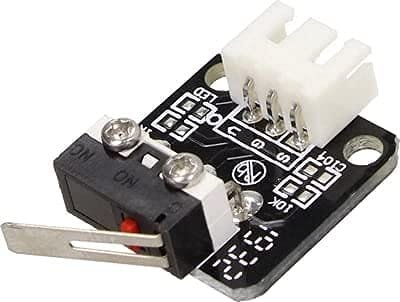

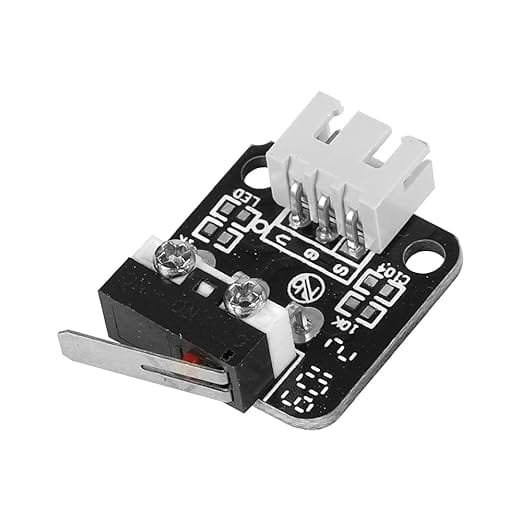

Limit Switch –
3D Printer X/Y/Z Axis End Stop Limit Switch 3Pin N/O N/C Control Micro Switch. Compatible with Ender-3/Ender-3 S/Ender-3 Pro/Ender-3 V2/ Ender 3 S1/ Ender 3 S1 Pro/ Ender-3 Max/CR-10/CR-10 V3/CR-10 S4 and other suitable 3D Printers.
- Normal 3Pin mechanical limit switch for 3D Printer.
- Compatible with CR-10 Series, Ender-3, or other 3D printer.
- Small and compact size, easy installation, just plug and play.
- Type : Limit Switch (3pin)
- Suitable : For CR-10 Series and Ender-3
- Max Voltage : 250V
- Switch Size (each one) : 2.5 x 2 x 0.7cm / 1.0 x 0.8 x 0.3in
- Switch Weight (each one) : 2.7g / 0.09oz
Proximity Switch 1-10mm Distance Measuring Capacitance Sensor –
- APPLICATION: Capacitive proximity sensor are widely used in automatic control industry for detecting, controlling and noncontact switching. When proximity switch is close to some target object, it will send out control signal. The product is also gaining wide acceptance in the 3D Printing industry as it can help solve the problem of bed levelling which causes prints to fail a lot of times.
- SPECIFICATIONS: Product Name : Capacitive Proximity Switch Wire Type : DC 3 Wire Type Switch Appearance Type : Cylinder Typ, metal shell Supply Voltage : DC 6-36V Current Output : 300mA
- Detect Object : Metal, glass, etc Output Type : NPN NC Diameter of Column Sensor : 18mm Detecting Distance : 10mm Cable Length : 2m lead wire Net Weight : 45g External Material : Plastic + metal
L293D Motor Driver Shield
- L293D Motor Driver Shield for microcontrollers features 2 servo and 4 motor connectors for DC or stepper motors. It is very versatile and a great shield for any robotic project.
- It can eliminate the dead zone of static friction when positive and negative. The bipolar PWM of L293D motor driver has multiple advantages, such as the current continuous, or microcurrent vibration when the motor stops.
- Dimensions(LxWxH):70x54x18 mm. Up to 4 bi-directional DC motors | Up to 2 stepper motors | Pull down resistors | Reset button | Big terminal block connectors | Screw terminal connectors for easy motor connection | High noise immunity inputs
- Logic control voltage:4.5V to 5.5V I Continuous Output Current:1.2A I 4 H-Bridges:L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection and internal kickback protection diodes
Dual LED 0.28” Red-Blue Display Digital Voltmeter (0-100V)
- Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. Digital Voltmeter is an instrument used to measure the electrical potential difference between two points in a circuit.
- USAGE: Digital Voltmeter is used to know the actual voltage of different component. DVM is widely used to check if there is power in the circuit, such as the mains outlet. Knowing the voltage across a circuit, current can be calculated.
- FEATURES: It measures up to 100V and 100A DC. Very handy and small in size. It requires a power supply of 5V. 100% Brand new and high quality.
