Visual Prototypes
Complex geometries
Superior Finish Quality
[aiovg_video id=3951]
What is Polyjet?
PolyJet is a 3D Printing technology/Additive manufacturing process which uses an UltraViolet-cured liquid resin. PolyJet 3D printers use print head which is similar to that of an inkjet. This print head distributes the resin onto the print bed, which is then cured and solidified by a UV light.
PolyJet printers use a gel like soluble support material which can be washed away. This allows assemblies of parts and complicated geometries to be easily printed together. Parts printed via polyjet, do not require multiple alcohol baths/post curing or washing as the come off the build platform fully-cured without any liquid resin residue, eliminating the need for multiple alcohol baths to wash the parts, or post-curing.
Available Materials
Standard Resin :
Produces extreme detail, rigid, injection mold-like parts with a smooth surface.

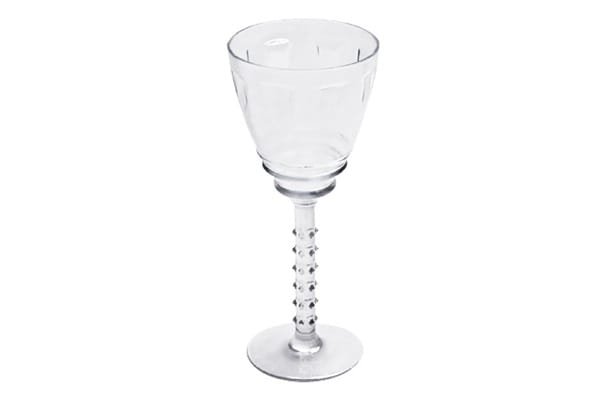

Transparent Resin :
Has a translucent appearance. Ideal for injection molding-like prototypes.
Heat Resistant Resin :
Has high strength and heat deflection temperature and can be used to produce high detail, low-run injection molds.

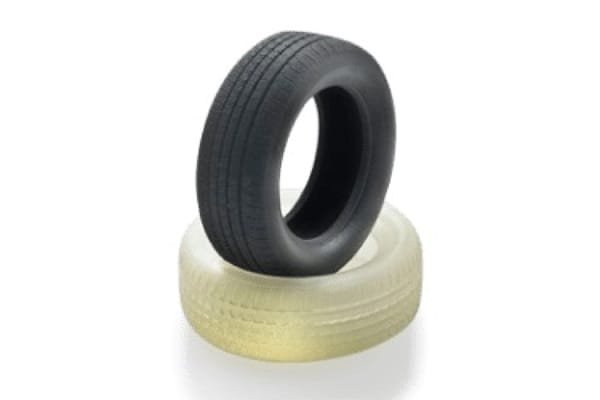

Rubber-like Resin :
Produces high-detail parts with a soft rubber-like appearance and shore hardness < 70A. Not suitable for functional prototypes.
Castable Resin :
High detail resins for investment casting pattern making. No residue after burn out. Greater detail than Castable Resin (SLA).
We can 3D Print it All!
From small prototypes to life-scale models, we can 3D Print in all shapes and sizes. With an in-house infrastructure of 50+ high-speed printers, get your parts printed from the experts!
Whether you need a single prototype or batch production of machine-like finished parts, you’ll get the best quality parts at reasonable prices!
Polyjet Capabilities
Requirement
Capabilities
Maximum Build Size
380 x 250 x 200 mm (19.46″ x 9.84″ x 7.87″)
Standard Lead Time
3 – 4 Days (Depending on the file size and print duration)
Dimensional Accuracy
± 0.2% with a lower limit on ± 0.1 mm
Layer Height
32 μm
That’s a scale model we 3D Printed for UBER
Working with VNV Printlab, we 3D Printed a 1:70 Scale Model of Delhi’s Metro Station for UBER.
Presented to the government and the press by UBER CEO, Dara Khosrowshahi, the model sought to build awareness about the project.
Coupled with overlay motion graphics using Augmented Reality, the model became alive and interactive for the audience
Some of our other work
