Capacitive Sensors
Original price was: ₹1,000.00.₹699.00Current price is: ₹699.00.(Includes Standard Shipping & GST)
Capacitive proximity sensor are widely used in automatic control industry for detecting, controlling and noncontact switching. When proximity switch is close to some target object, it will send out control signal. The product is also gaining wide acceptance in the 3D Printing industry as it can help solve the problem of bed levelling which causes prints to fail a lot of times. Capacitive Proximity Switch Wire Type : DC 3 Wire Type Switch Appearance Type : Cylinder Typ, metal shell Supply Voltage : DC 6-36V Current Output : 300mA.
3 in stock
Guaranteed safe & secure checkout
Description
Technical Details
Reviews (0)
Description

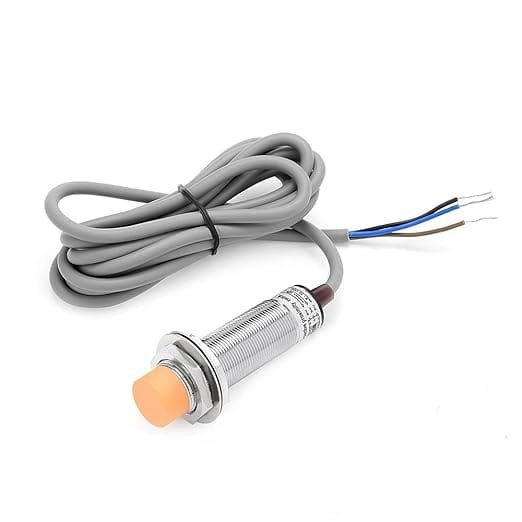

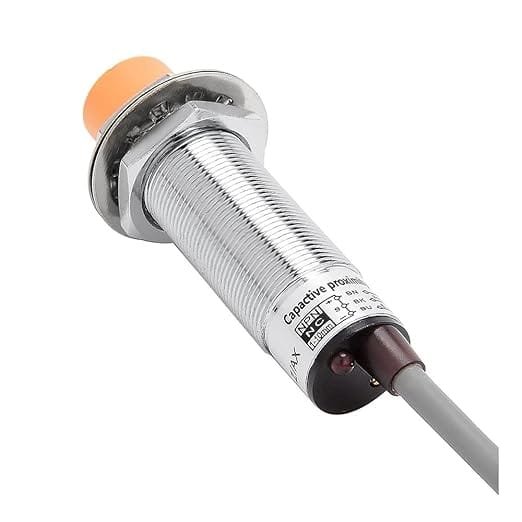

Proximity Switch 1-10mm Distance Measuring Capacitance Sensor –
- APPLICATION: Capacitive proximity sensor are widely used in automatic control industry for detecting, controlling and noncontact switching. When proximity switch is close to some target object, it will send out control signal. The product is also gaining wide acceptance in the 3D Printing industry as it can help solve the problem of bed levelling which causes prints to fail a lot of times.
- SPECIFICATIONS: Product Name : Capacitive Proximity Switch Wire Type : DC 3 Wire Type Switch Appearance Type : Cylinder Typ, metal shell Supply Voltage : DC 6-36V Current Output : 300mA

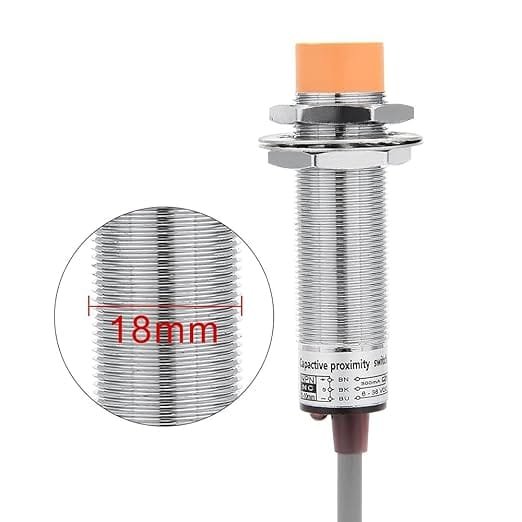

- Detect Object : Metal, glass, etc Output Type : NPN NC Diameter of Column Sensor : 18mm Detecting Distance : 10mm Cable Length : 2m lead wire Net Weight : 45g External Material : Plastic + metal
